User tools configuration

Tools ››
Parent Previous Next

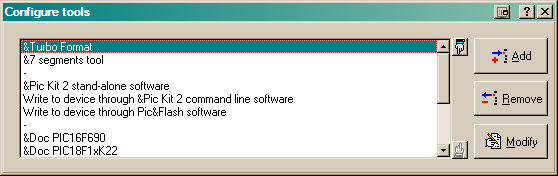

The tools menu may be fully customized for the user needs; initially it comes empty.

Some documents may be added automatically by the device characteristics viewer (datasheets).




Note that for the "Add" functionality the new data is pre-filled with the data of the tool line currently selected, for easy duplication.

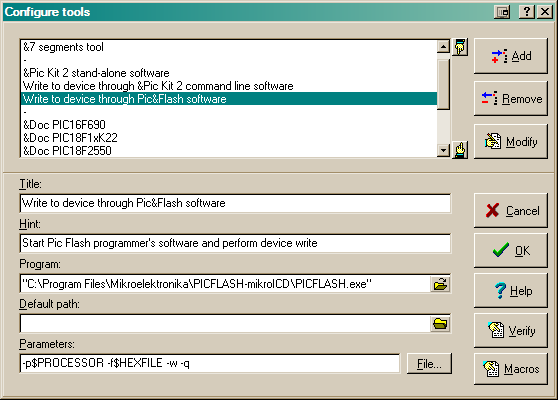

(This one is for calling MikroE PicFlash programming tool)


Menu separator lines: A simple dash in the title is enough to make a menu separator.

Ampersand character in the title: This is the common way to tell that the next character has to be underlined and designed as the keyboard shortcut character (Alt-Letter).


In the "Parameters" field, macros may be used. They may be displayed / hidden by the "Macros" button that extends the dialog again.

Macros names are inserted into the "Parameters" field at the cursor place, by double-clicking on a macro in the list.


Macros:


In the table below, suppose that the current project is "c:\temp\test_pwm.pmp", and the current editor file is "c:\temp\test.pas".


Name

Behavior

Result example

$EDNAME

Current editor file name (without path nor quotes)

test.pas

$EDFILE

Current editor file name (with path and quotes)

"c:\temp\test.pas"

$PRJNAME

Current project file (without path nor quotes)

test_pwm

$PRJFILE

Current project file (with path and quotes)

"c:\temp\test_pwm.pmp"

$ASMPATH

Current project compiler output path (without quotes)

c:\temp\asm\

$HEXPATH

Current project linker output path (without quotes)

c:\temp\hex\

$HEXFILE

Current project linker output file (with path and quotes)

"c:\temp\hex\test_pwm.hex"

$SAVE

Save current file before to call the tool


$SAVEALL

Save all files before to call the tool


$PATH

Path part of a file name (without quotes)

c:\temp\

$NAME

Name part of a file name (with extension, without quotes)

test.pas

$NAMEONLY

Name part only of a file name (without extension, without quotes)

test

$EXT

Extension part of a file name (with the dot, without quotes)

.pas

$PROCESSOR

Current project default processor (without quotes)

PIC16F84

$SPROCESSOR

Current project default processor (without quotes), short form

16F84
